Honda Dio
Front View
Front Right 3/4 View
Front Left 3/4 View
Right Side View
Left Side View
Rear Fight 3/4 View
Rear Left 3/4 View
Rear View
Front Tyre & Wheel View
Rear Tyre & Wheel View
Rear Suspension View

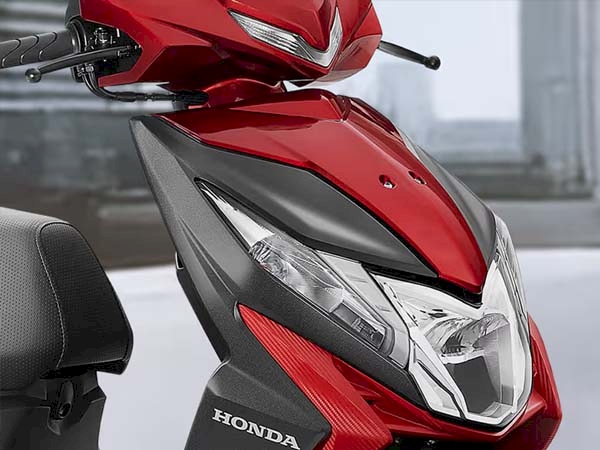

Head Light View
Speedometer View
Key Ignition View
Self Starter Button View
Foot Space View
Engine View
Seat View

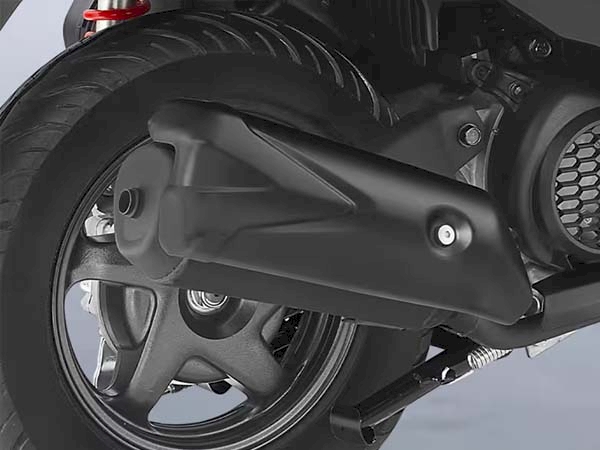

Exhaust View
Grab Rail View
Tail Light View
Model Name
Pearl Igneous Black + Pearl Deep Ground Gray
Pearl Igneous Black
Mat Marvel Blue
Mat Axis Gray Metallic
Imperial Red Metallic
Honda Dio Summary
Fuel Type
Petrol
Engine
109.51 cc
Transmission
Automatic
Mileage
48 kmpl
Body Type
Scooter
Max Power
7.75 bhp @ 8000 rpm
Seating Capacity
2
Honda Dio Colours (5 Colours)
Honda Dio Varients (2 Varients)
Honda Dio Specifications
| No of Cylinders | 1 |
| Valves per Cylinder | 2 |
| Max Power (bhp@rpm) | 7.75 bhp @ 8000 rpm |
| Max Torque (nm@rpm) | 9.03 Nm @ 5250 rpm |
| Emission Type | BS6 Phase |
| Length (mm) | 1808 mm |
| Width (mm) | 677 mm |
| Height (mm) | 1151 mm |
| Wheelbase (mm) | 1,260 mm |
| Ground Clearance (mm) | 160 mm |
| Fuel Tank Capacity (Liters) | 5.3 litres |
| Kerb Weight (Kg) | 106 kg |
| Seat Height (mm) | 765 mm |
| Seating Capacity | 2 |
| Tyre Size - Front | 90/90 - 12 |
| Tyre Size - Rear | 90/100 - 10 |
| Wheel Size - Front | 12 inch |
| Wheel Size - Rear | 10 inch |
| Wheel Type | Steel |
| Suspension - Front | Telescopic |
| Suspension - Rear | Unit Swing |
| Brake Type - Front | Drum |
| Brake Type - Rear | Drum |
| Brake Size - Front (mm) | 130 mm |
| Brake Size - Rear (mm) | 130 mm |
| ABS (Anti-lock Braking System) | No |
| Techometer | -- |
| Electric Start | Yes |
| Speedometer | Digital |
| Odometer | Digital |
| Fuel Gauge | Yes |
| Low Fuel Indicator | Yes |
| Low Battery Indicator | No |
| Low Oil Indicator | Yes |
| Side Stand Alarm | Yes |
| Engine Kill Switch | Yes |
| Clock | Yes |
| Navigation System | No |
| USB Compability | Yes |
| Bluetooth | No |
| TC (Traction Control) | No |
| Standard Warranty (Year) | 3 Year |
| Standard Warranty (Kilometers) | 36000 Km |
